-18% Sold out
NU310130 | Switch, New Unica, 1-pole 1-way, 10AX, 1 module, screwless terminals, painted, IP4X, aluminum
Original price was: 176.00 EGP.144.32 EGPCurrent price is: 144.32 EGP.
NU303730 | Socket-outlet, New Unica, mechanism, 2P+E, 16A, Schuko, with shutter, painted, aluminum
Original price was: 324.50 EGP.266.09 EGPCurrent price is: 266.09 EGP.

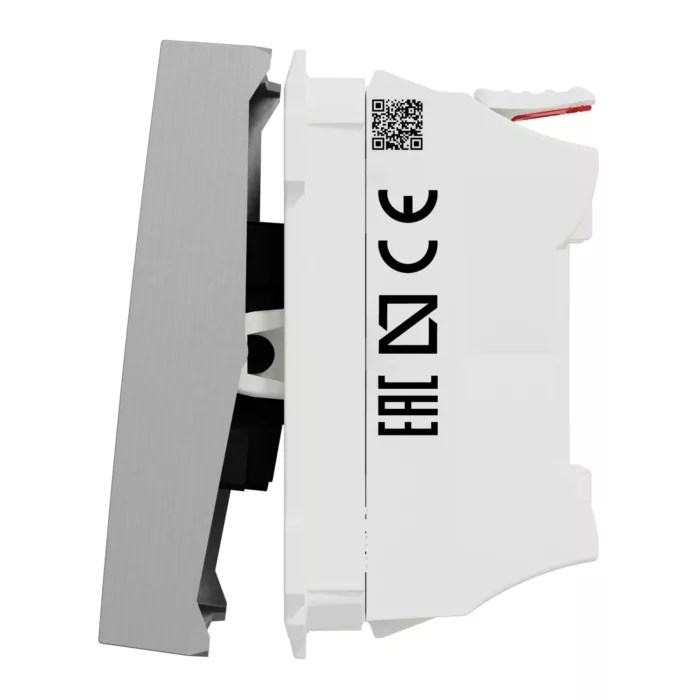

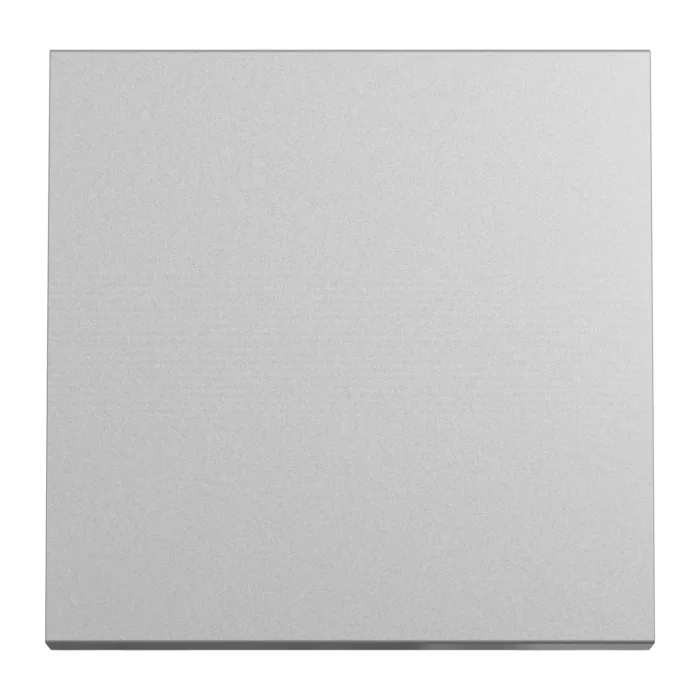

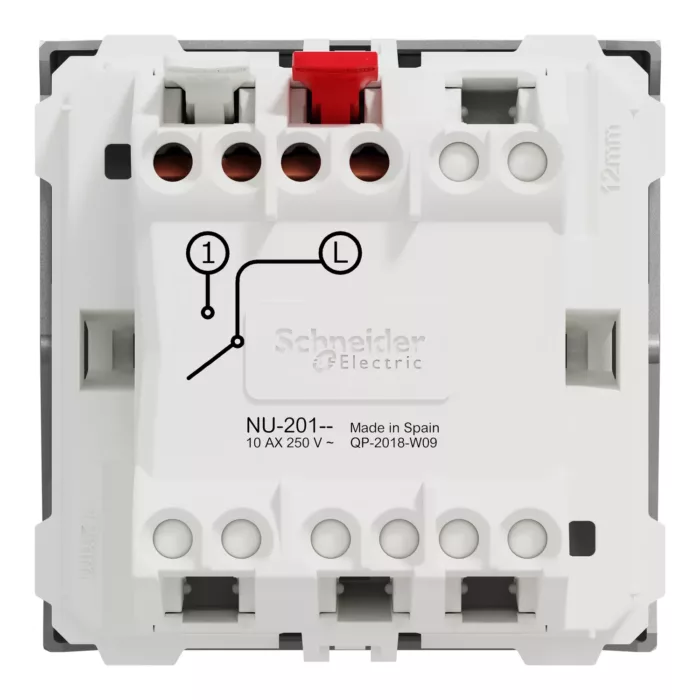

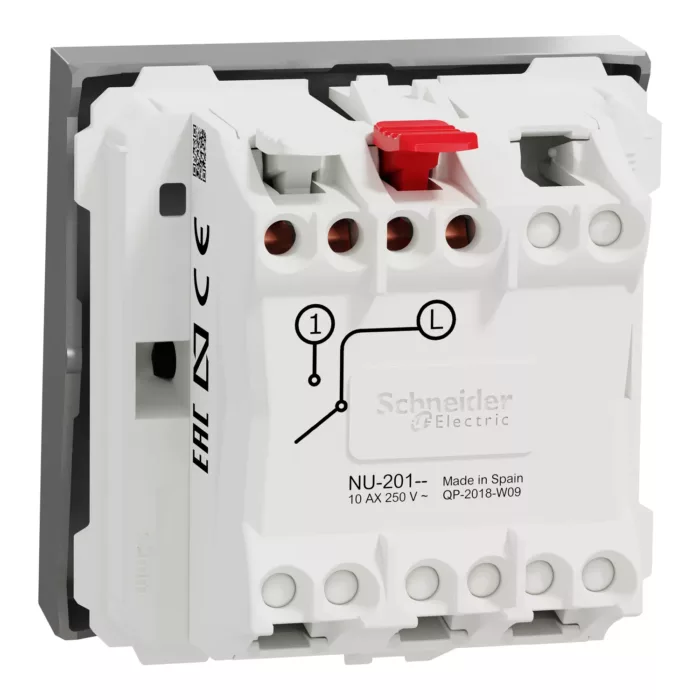

NU320130 | Switch, New Unica, 1-pole 1-way, 10AX, 2 modules, screwless terminals, painted, IP4X, aluminum
Original price was: 210.10 EGP.172.28 EGPCurrent price is: 172.28 EGP.
غير متوفر في المخزون
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Description
The Mureva Styl surface mounted box is a robust and waterproof IP55 device when associated with a Mureva Styl box cover. Easy handling with its large cabling space. This product can be used indoor as well as outdoor. its dimensions are : 54 mm height, 76 mm width, 54 mm and 76 mm length.
Additional information
| Main Category | New Unica Silver |
|---|---|
| Device presentation | Mechanism |
| Sub Category | Light switches |
| Rated current: | 10 AX contacts |
| Colour | Silver |
| Network type | alternating current |
| Network frequency | 50/60 Hz |
| Insulation resistance | > 5 MΩ at 500 V |
| Opening distance | > 3 mm |
| Operator | swing |
| Materials | ASA+PC: Mechanism cover ABS(Acrylonitrile Butadiene Styrene): Mechanism cover |
| surface layer | Shiny |
| the offer | 45 mm |
| Height | 45 mm |
| Depth | 34.25 mm |
| Depth of integration | 21.15 mm |
| Net weight | 0,023 kg |
| Product Certifications | CE AENOR EAC NF VDE |
| Marking | Without Marking |
| Technology type | Electromechanical |
| swing number | 1 |
| Key function | One outlet, one direction |
| Device application | Light control |
| Colour tint | Aluminum |
| Packing type | flow-pack packaging machine |
| Environmental feature | Oil Liquid Soap Alcohol Gasoline Bleach Liquid Cleaning Fluids Acetone UV Resistant |
| Criteria | EN 60669-1 LV Directive EMC Directive |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3,500 cm |
| Package 1 Width | 4,500 cm |
| Package 1 Length | 4,500 cm |
| Package 1 Weight | 23,000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 8.200 cm |
| Package 2 Width | 17,700 cm |
| Package 2 Length | 18,500 cm |
| Package 2 Weight | 314,000 g |
| Unit Type of Package 3 | S04 |
| Number of Units in Package 3 | 200 |
| Package 3 Height | 30,000 cm |
| Package 3 Width | 40,000 cm |
| Package 3 Length | 60,000 cm |
| Package 3 Weight | 7,046 kg |
| sustainable display case | Product of the Green Premium range |
| Sustainable packaging | Yes |
| Environmental Disclosure | Product environmental profile |
| Circular profile | No special recycling required. |
