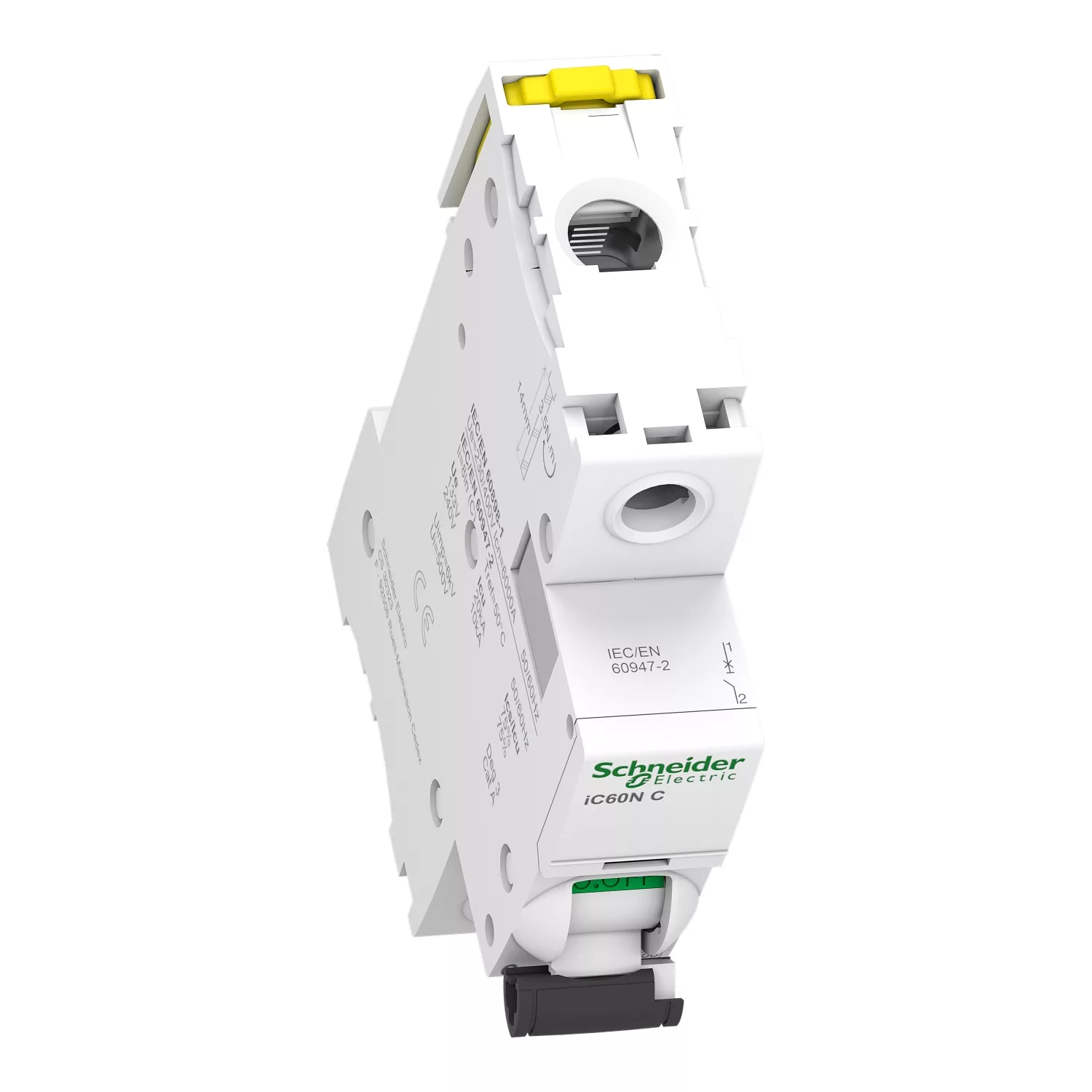

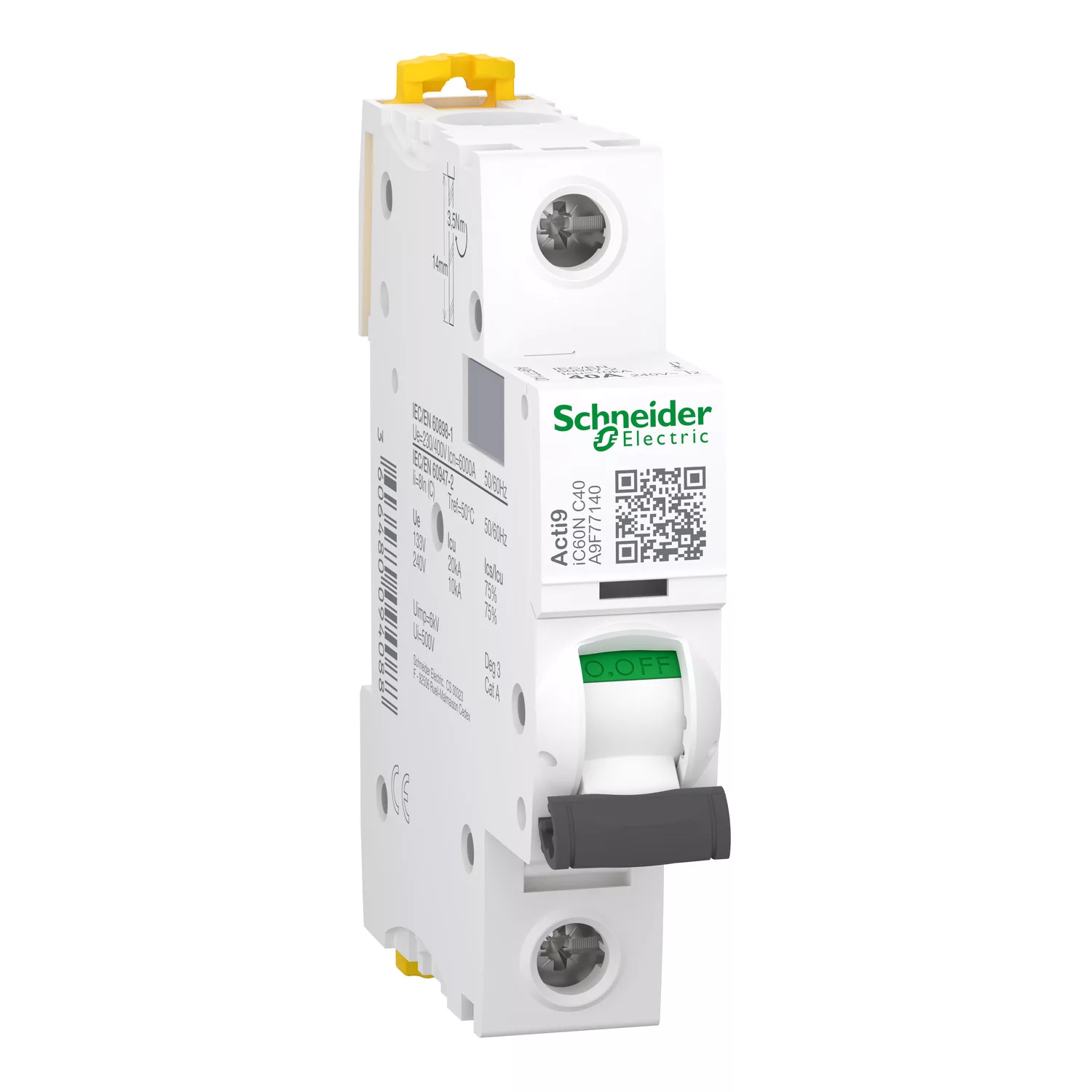

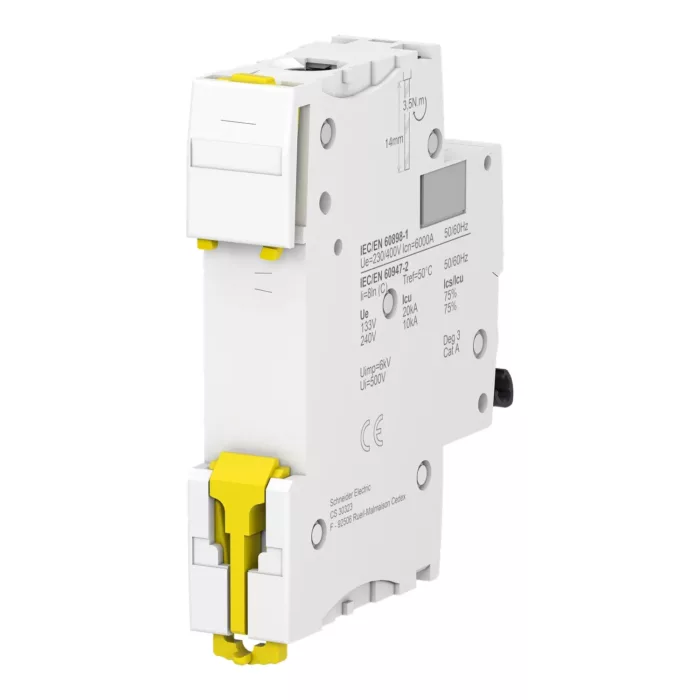

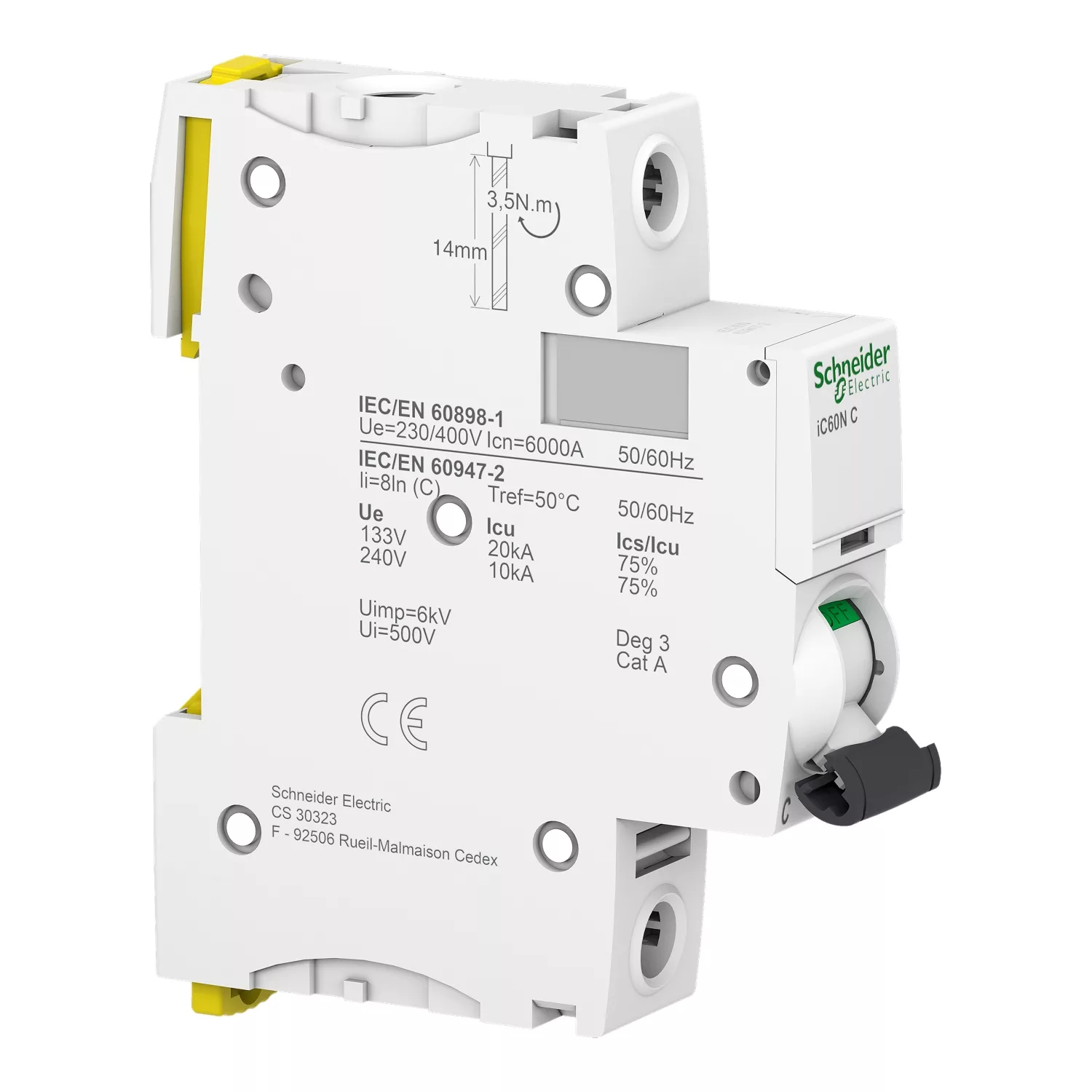

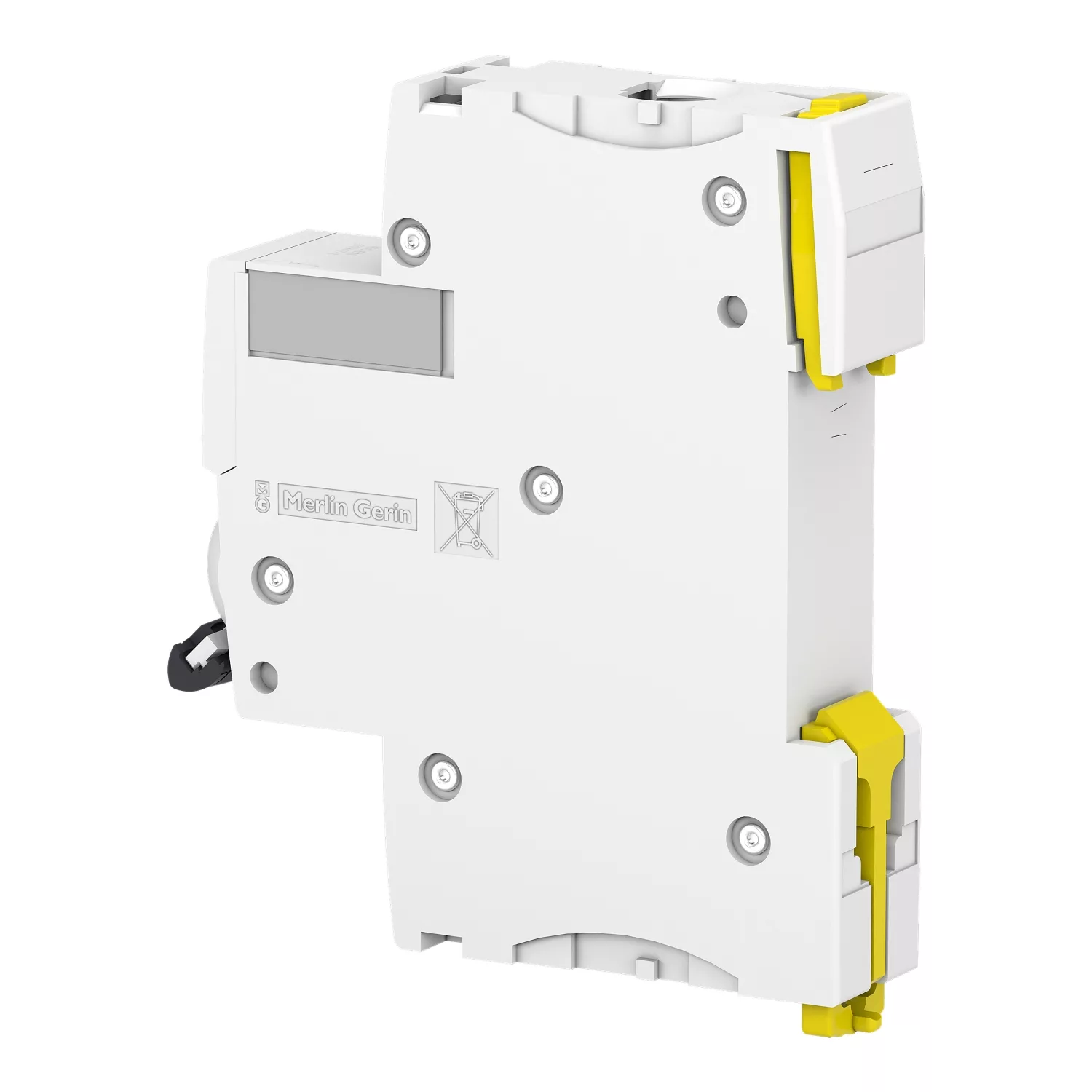

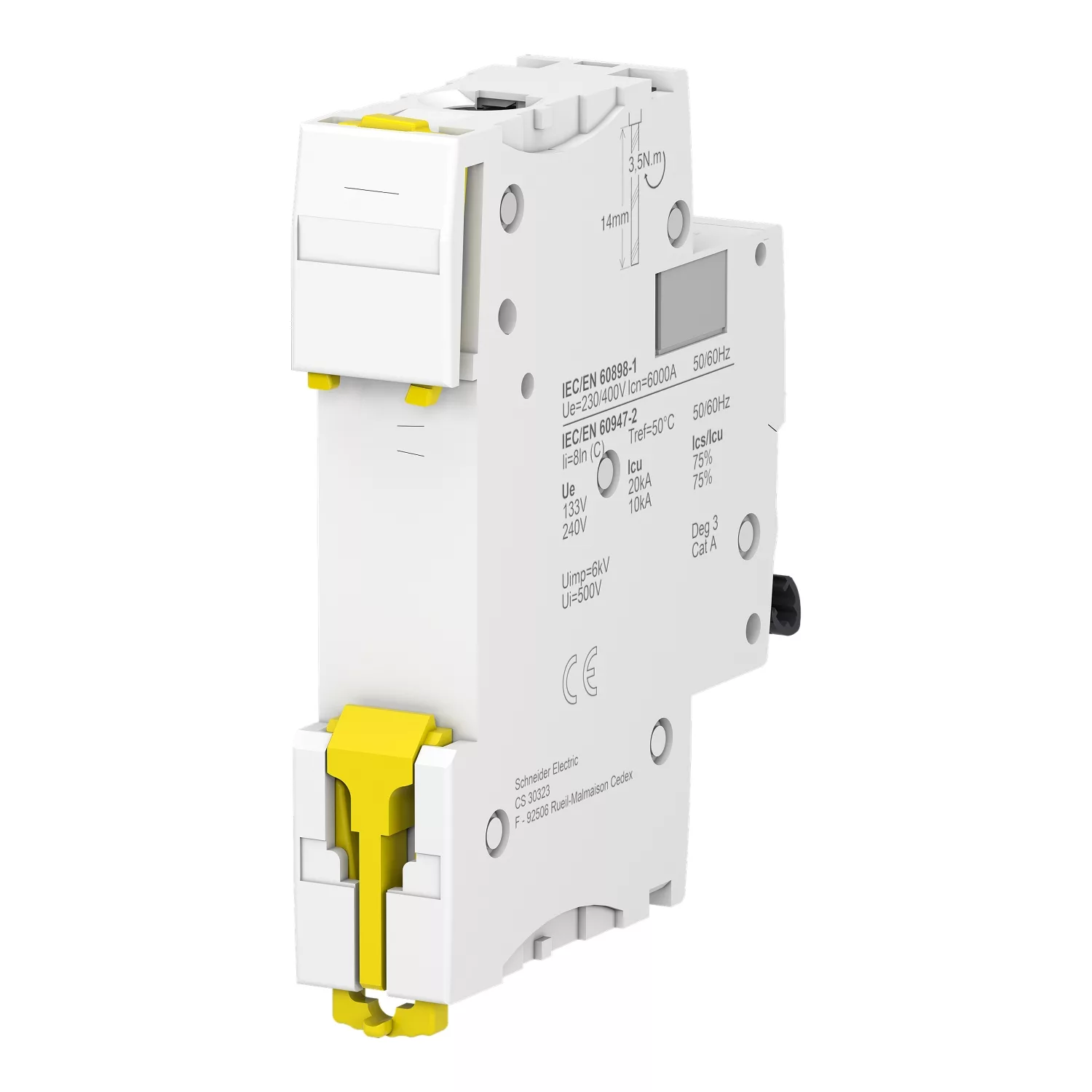

A9F77140 | Miniature circuit breaker, Acti9 iC60N, 1P, 40 A, C curve 10 kA

This Acti9 iK60N is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 6A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 6kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuits against short circuit and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is white (RAL9003). The dimensions are (W) 18mm x (H) 85mm x (D) 78.5mm. The weight is 0.215kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C. Acti 9 automatic breaker from Schneider – available in 1P, 2P, 3P, and 4P – full protection up to 100A. Acti 9 circuit breakers operate efficiently on 220V and 380V systems. Maximize your protection with Schneider Acti 9 circuit breakers – designed in France. Discover the CB Acti 9 – available from 10A to 100A with short circuit options of Isc 6kA and 10kA. Holoul’s distribution panels include premium Schneider Acti 9 automatic breakers. Acti 9 from Schneider Electric – the best French breaker for low voltage applications. At Holoul, we supply French-designed Schneider Acti 9 electrical breakers. Choose 1P or 4P circuit breakers from Acti 9 based on your load requirements. Schneider Acti 9 breakers are ideal for homes, factories, and hotels. Use Acti 9 circuit breakers from 10A to 100A to match your specific load needs. Holoul provides Schneider Acti 9 panels with robust European design. Now available: Acti 9 3-phase breakers (3P) for industrial applications. Get the best automatic electric switch from Holoul – Schneider Acti 9. Schneider Acti 9 ensures stable performance at 380V – 3P or 4P options. Acti 9 breakers operate reliably under short circuit current of 10kA (Isc). Save time and cost with ready Schneider Acti 9 panels featuring copper bars. French-made MCBs from Schneider Acti 9 – performance and safety guaranteed. All Acti 9 models start from 10A up to 100A – full protection for your setup. Use Schneider 3P breakers – perfect for generators and industrial machines. Holoul Electric brings you the original Acti 9 with international specifications. Whether you need 2P or 3P – we offer the full Acti 9 product range. Automatic switch suitable for low voltage networks – Acti 9 from Schneider. Browse the French CB collection – Schneider Acti 9 – now at Holoul. Best 1P/2P/3P/4P electric switches from France – available at Holoul. Acti 9 suits both 220V single-phase and 380V three-phase systems. Schneider Electric offers Acti 9 breakers with protection levels up to 10kA – ideal for critical circuits. Original distribution panels with Schneider Acti 9 breakers now available. Holoul provides Schneider CBs starting from 10A – covering residential and industrial needs. Get a reliable 4P protection switch with stable performance at high voltage. CB Acti 9 from Schneider – smart design and French durability. Acti 9 electrical switches fit all modern distribution panels. French-quality automatic switch from Schneider – stable at 6kA short circuit current. Choose MCCB-type breakers from Acti 9 for lighting and machinery circuits. Schneider distribution panels include multi-pole Acti 9 automatic breakers. 220V single-phase breakers with current ratings up to 100A. Acti 9 circuit breakers – from 10A to 100A – with Isc up to 10kA. Schneider breakers available in 1P, 2P, 3P, 4P – made in France. Buy your automatic electric switch from Acti 9 – compact and reliable. Acti 9 MCBs work with 220V and 380V loads – order now at Holoul Electric. All Acti 9 breakers deliver top performance in harsh environments. French-made Acti 9 switches – durable and efficient for every load. Choose between 6kA and 10kA short circuit capacity – Acti 9 has both. Available: Acti 9 electric breakers with easy DIN rail mounting. The best French CB for panels – Acti 9 from Schneider Electric. Available: single, three, and four-pole breakers for every project. Schneider Electric Acti 9 breakers – reliable under high short circuit current. MCB Schneider Acti 9 4P 380V – French power in every project. Ready-to-install panels from Holoul include original Acti 9 protection switches. Choose an automatic breaker from 10A to 100A – stable and efficient. Holoul supplies all original models of Schneider Acti 9 – fast ordering process.
